Airloy® X114 High-Temperature Lightweight Plastics Replacements

Airloy® X114 High-Temperature Strong Aerogel Tiles

$180

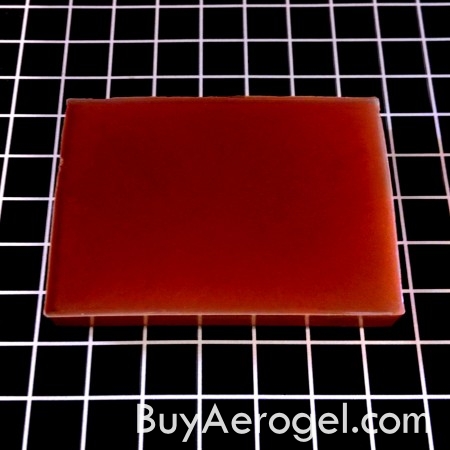

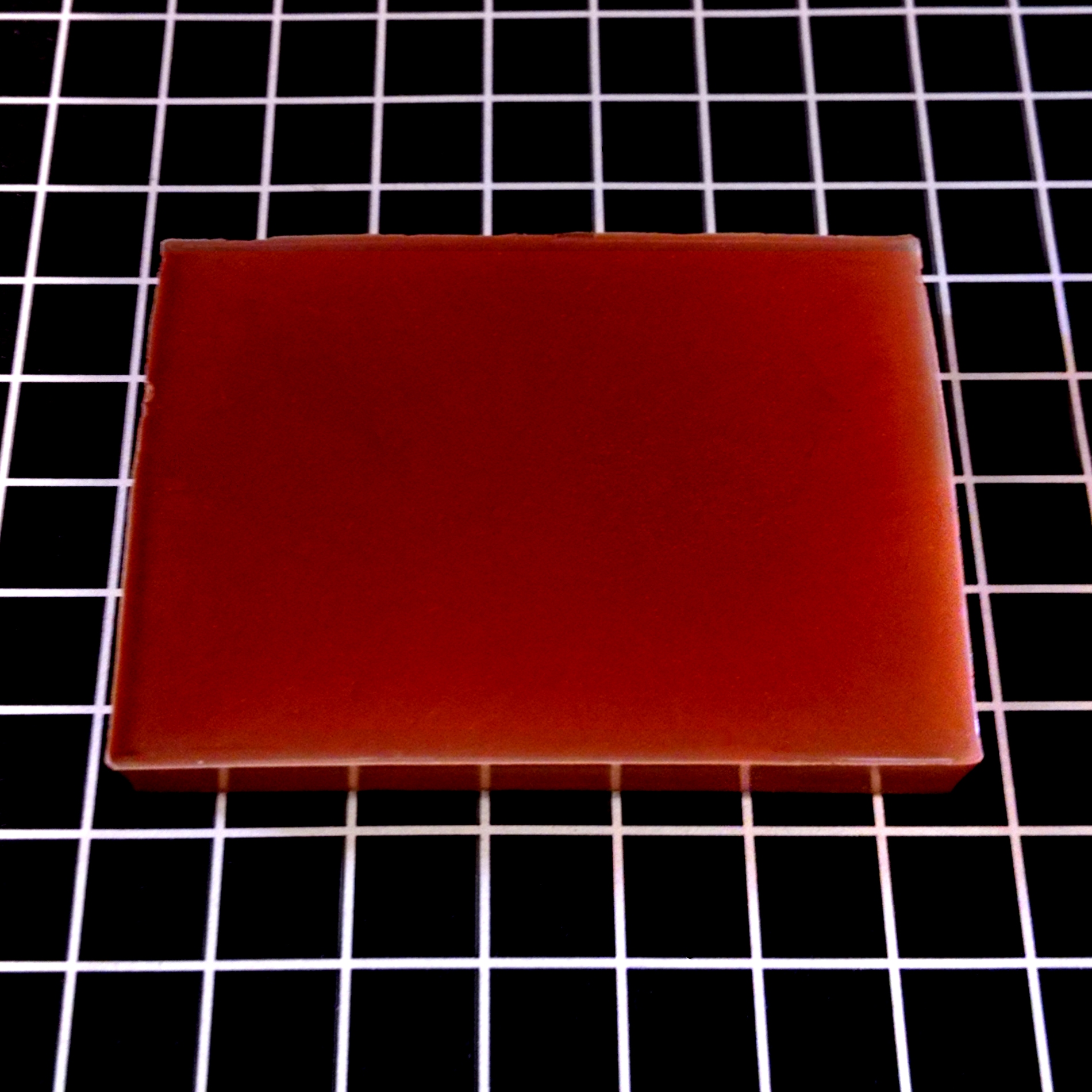

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially-available polyimide aerogels. Airloy X110 materials are mechanically robust high-temperature aerogels with the strength to stand up to real-world applications. Airloy X114 comes in densities up to three times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required. (Airloy X103 is somewhat stronger and stiffer at comparable density, however limited to 80°C). Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~300°C. Color is red-brown. Dimensions are approximately 1.8″ x 2.5″ x 0.3″ (4.6 cm x 6.4 cm x 0.7 cm).

This product is no longer unavailable. As an alternative, you may want to consider our Airloy X116 for your high temperature applications.

Download the Material SDS here.

Airloys are sold by density. Properties such as strength and stiffness increase with increasing density, while thermal conductivity decreases with decreasing density. Airloy X114 properties scale with density approximately as follows:

Density Class Density Compressive Yield Strengtha Compressive Modulusa Ultimate Strengtha Thermal Conductivitya
H 0.4 ± 0.02 g/cc 3 MPa 113 MPa 167 MPa 32 mW/m-K

aApproximate values. For reference only.

Densities currently available for online purchase are shown in the section above. Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$180 $178 $176 $174 $172



Please click on the letter below with the corresponding density class to ADD TO CART:

thumbnail
SKU: P-AT.A.X114. Tags: , , , , .

Product Description

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially-available polyimide aerogels.  Airloy X110 materials are mechanically robust high-temperature aerogels with the strength to stand up to real-world applications. Airloy X114 comes in densities up to three times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required.  (Airloy X103 is somewhat stronger and stiffer at comparable density, however limited to 80°C). Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~300°C. Color is red-brown. Dimensions are approximately 1.8″ x 2.5″ x 0.3″ (4.6 cm x 6.4 cm x 0.7 cm).

Download the Material SDS here.

Airloys are sold by density. Properties such as strength and stiffness increase with increasing density, while thermal conductivity decreases with decreasing density. Airloy X114 properties scale with density approximately as follows:

Density Class Density Compressive Yield Strengtha Compressive Modulusa Ultimate Strengtha Thermal Conductivitya
H 0.4 ± 0.02 g/cc 3 MPa 113 MPa 167 MPa 32 mW/m-K

aApproximate values. For reference only.

Densities currently available for online purchase are shown in the section above. Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$180 $178 $176 $174 $172

Please see our patent and trademark information page for information for patents protecting this product.

Additional Information

Weight 2 oz
Dimensions 3 x 4 in

Dimensions

1.8″ x 2.5″ x 0.3″ (4.6 cm x 6.4 cm x 0.7 cm)
