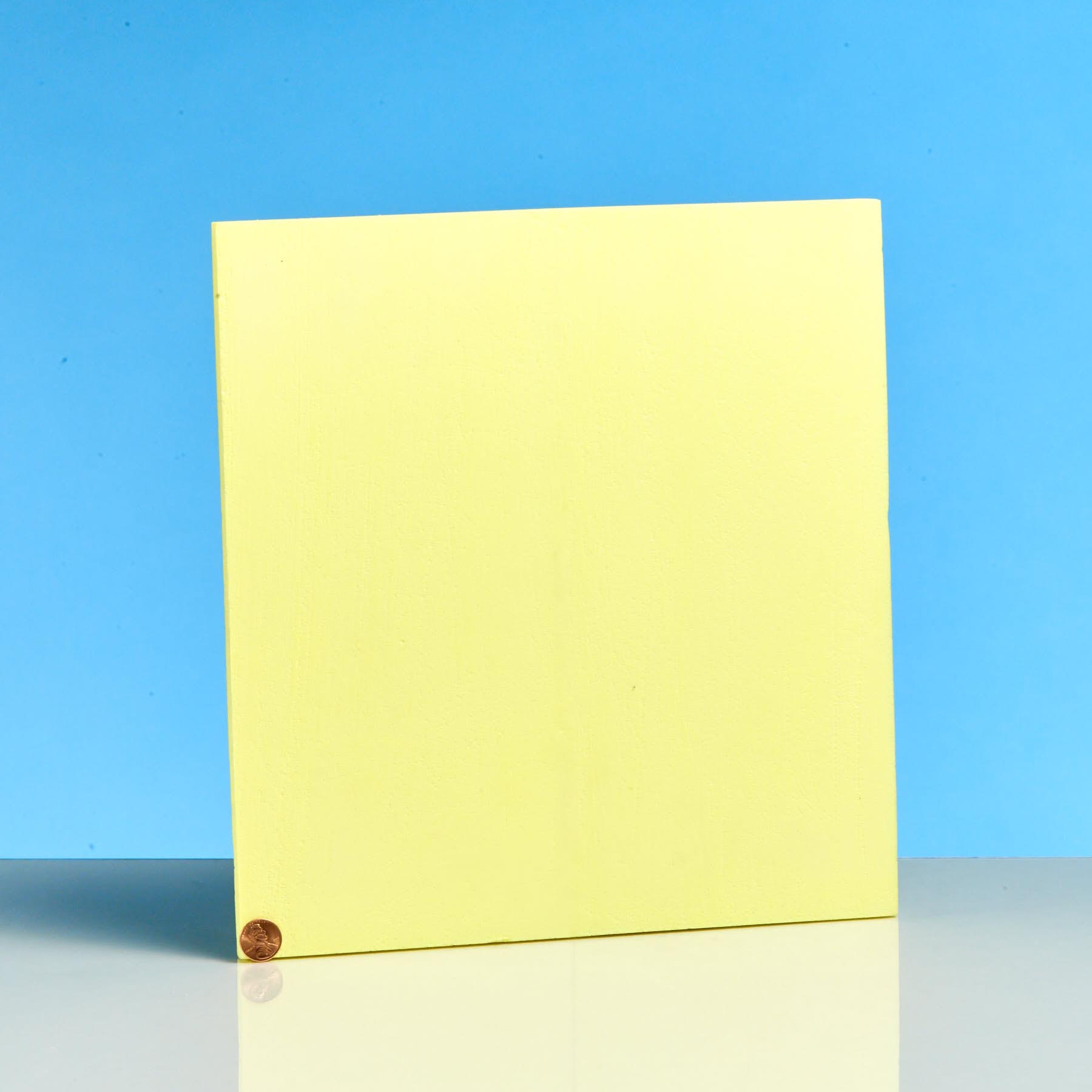

Airloy® X116 Non-Flammable Strong Aerogel Large Panels

$490

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially-available polyimide aerogels. Airloy X116 materials are mechanically robust aerogels with the strength to stand up to real-world applications. Now available in large panels (30 cm x 30 cm x 0.5 cm). Airloy X116 comes in densities up to fifteen times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required.  Non-flammable.  Does not burn, smoke, or drip upon exposure to flame.  Great for aviation and automotive applications. Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~300°C. Color is yellow.  Airloy X116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C.  Part annealing is suggested.  Made in part with NASA technology, licensed to Aerogel Technologies.

Download the Material SDS here.

Smaller sample coupons are also available for smaller projects and low-cost materials evaluation.

Note: Product estimated to ship second week of December

Airloys are sold by density. Properties such as strength and stiffness increase with increasing density, while thermal conductivity decreases with decreasing density. Airloy X116 properties scale with density approximately as follows:

Density Class Density Compressive Strengtha Compressive Modulusa Operating Temperature a Thermal Conductivitya
L 0.09 ± 0.02 g/cc 0.4 MPa 11 MPa 400°C 29 mW/m-K

aApproximate values. For reference only.

Densities currently available for Airloy X116 are shown in the section above. Materials available for online purchase are listed above. Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$490 $450 $420 $400 $390

Please click on the letter below with the corresponding density class in order to add to cart.

thumbnail
SKU: P-AT.A.X116. Categories: , . Tags: , , , , . Brand: .

Product Description

Airloy® X110 series materials from Aerogel Technologies are the world’s first commercially-available polyimide aerogels. Airloy X116 materials are mechanically robust aerogels with the strength to stand up to real-world applications. Now available in large panels (30 cm x 30 cm x 0.5 cm). Airloy X116 comes in densities up to fifteen times lighter than plastics and is a great alternative to Airloy X103 where higher temperatures are required.  Non-flammable.  Does not burn, smoke, or drip upon exposure to flame.  Great for aviation and automotive applications.  Dust-free. Machinable and adherable. Thermally superinsulating with a conductivity between classic silica aerogels and Styrofoam®. Maximum operating temperature is ~300°C. Color is yellow.  Airloy X116 will undergo a one-time volume reduction upon exposure to temperatures above about 100°C.  Part annealing is suggested.  Made in part with NASA technology, licensed to Aerogel Technologies.

Download the Material SDS here.

Smaller sample coupons are also available for smaller projects and low-cost materials evaluation.

Note: Product estimated to ship second week of December

Airloys are sold by density. Properties such as strength and stiffness increase with increasing density, while thermal conductivity decreases with decreasing density. Airloy X116 properties scale with density approximately as follows:

Density Class Density Compressive Strengtha Compressive Modulusa Operating Temperaturea Thermal Conductivitya
L 0.09 ± 0.02 g/cc 0.4 MPa 11 MPa 400°C 29 mW/m-K

aApproximate values. For reference only.

Densities currently available for Airloy X116 are shown in the section above. Materials available for online purchase are listed above. Additional densities and sizes coming soon and available by request.

Quantity discounts available:

1-2 3-9 10-19 20-25 26+
$490 $450 $420 $400 $390

Please see our patent and trademark information page for information for patents protecting this product.

Additional Information

Weight 2 oz
Dimensions 12 x 12 in

Dimensions

12 in x 12 in x 0.2 in (30 cm x 30 cm x 0.5 cm)
