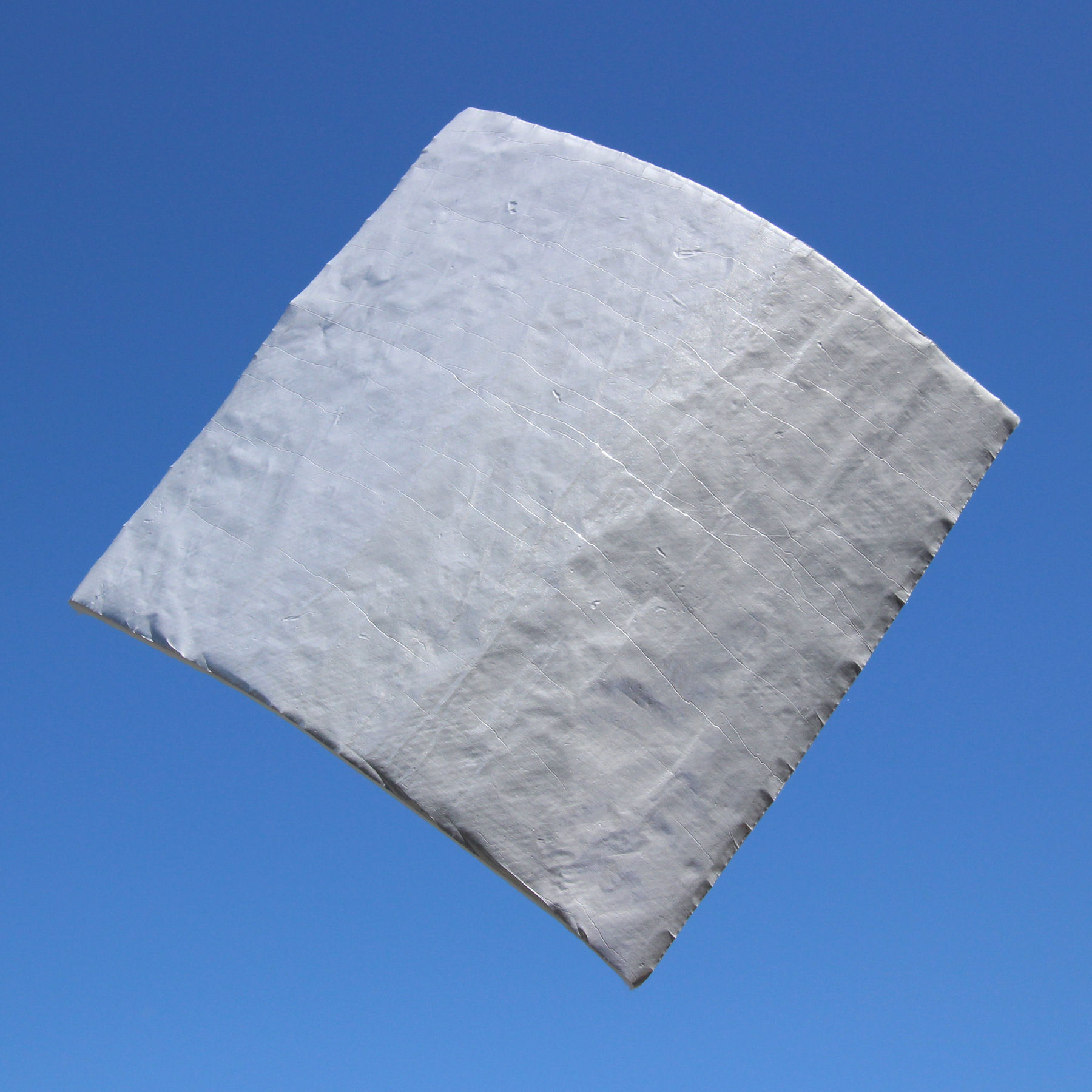

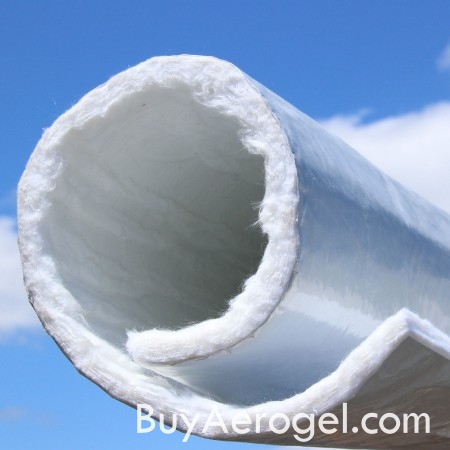

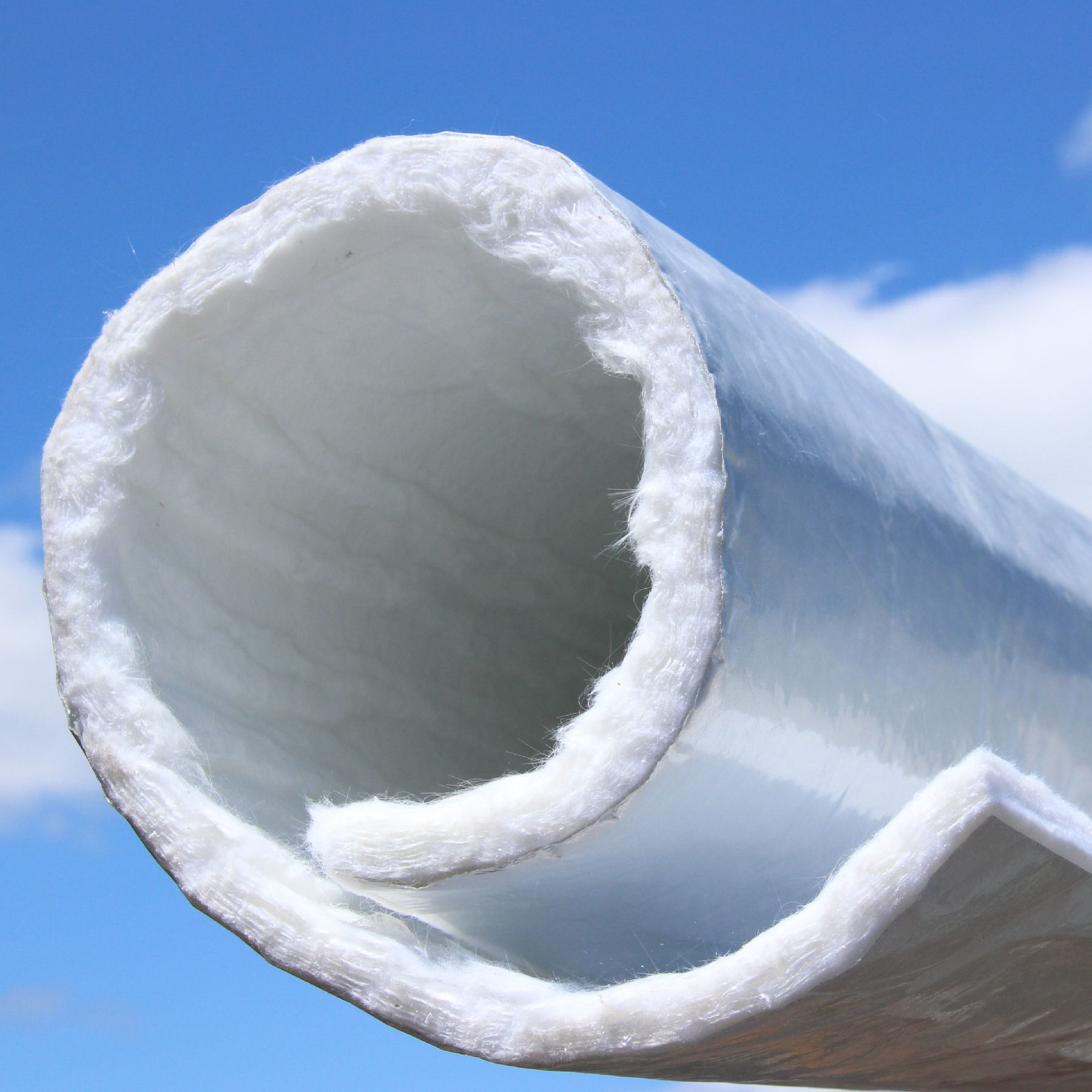

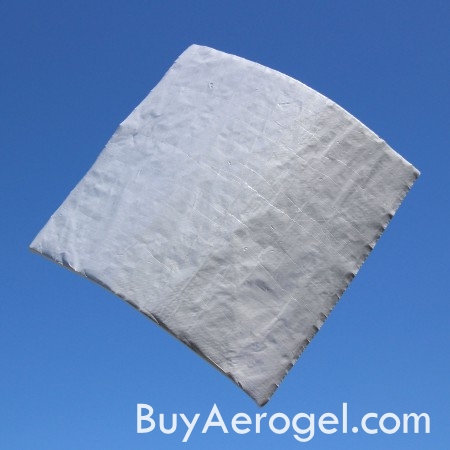

Cryogel Z 10-mm Superinsulating Blanket from Aspen Aerogels

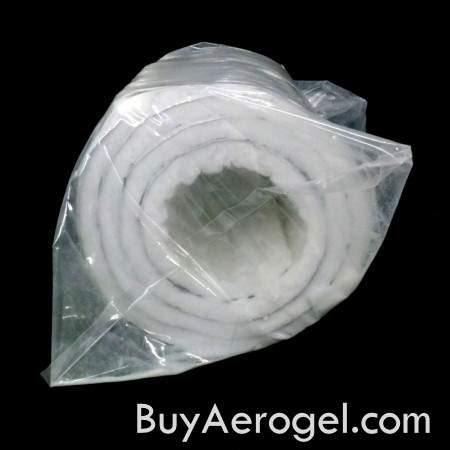

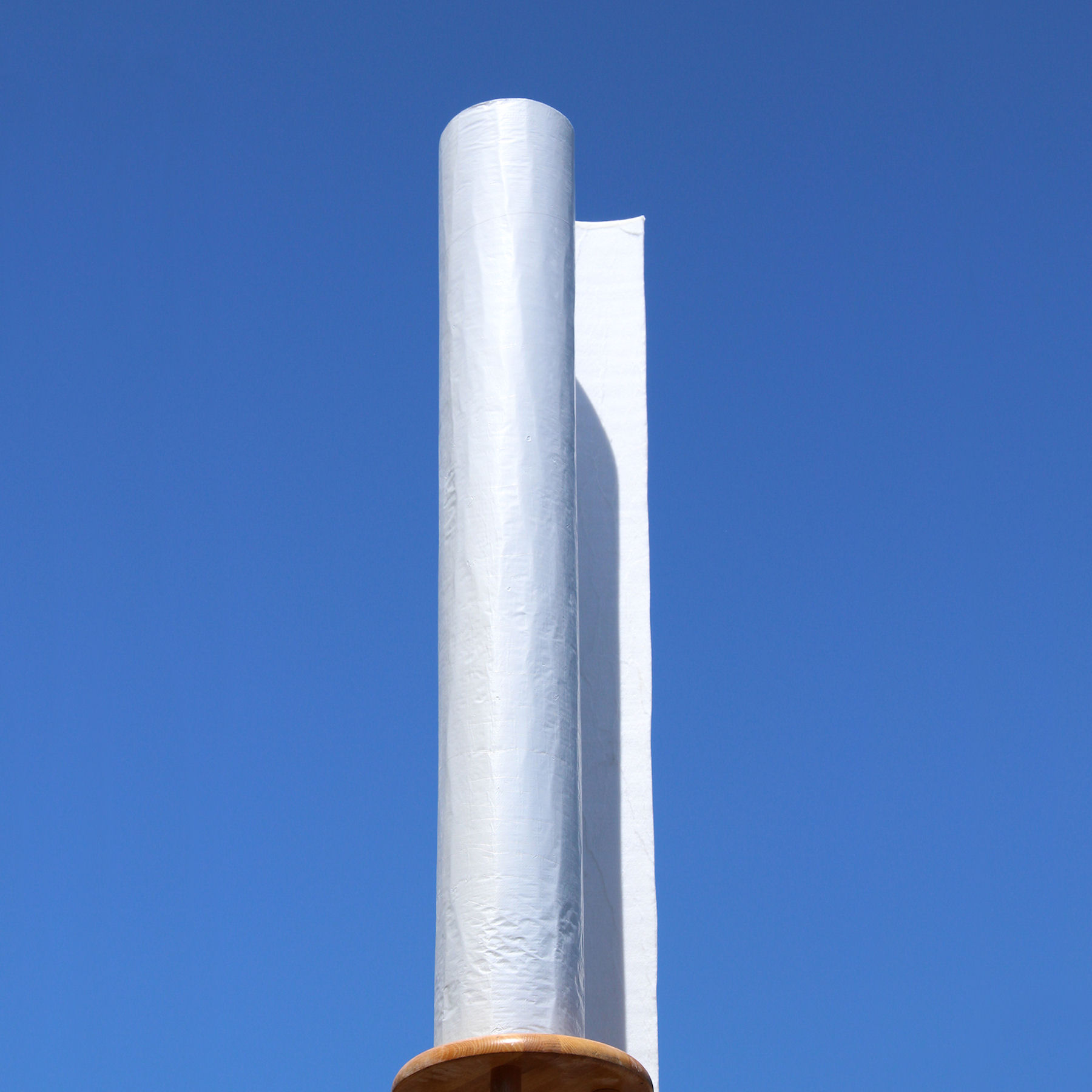

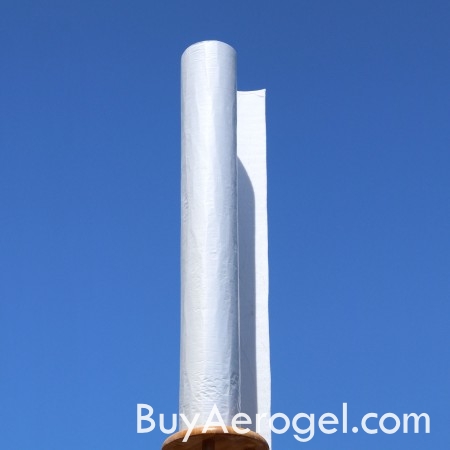

Cryogel Z 10-mm Superinsulating Blanket from Aspen AerogelsCryogel Z Superinsulating Blanket from Aspen AerogelsCryogel Z Superinsulating Blanket from Aspen AerogelsCryogel® Z Superinsulating Aerogel Blanket Roll

Cryogel® Z Blanket Cut-to-Size (10-mm Thickness)

From: $28.09 per sq. ft.

Aspen Aerogels' Cryogel® Z is a flexible aerogel composite blanket designed for insulating cold temperature environments ranging from cryogenic to ambient. With a thermal conductivity of 14 mW m-1 K-1 at room temperature, Cryogel insulates even better at lower temperatures with a thermal conductivity of only 10 mW m-1 K-1 at -330°F/-200°C! Laminated with a reflective metal barrier film. Lighter than Spaceloft but a bit dustier. Maximum temperature is 390°F/200°C, density is only 0.13 g cm-3 (4.3 oz/120 g per square foot). Download the SDS or Download the TDS.

Note: Product is dusty; gloves, eye protection, and dust mask recommended for handling.

Don't want the hassle of bulk insulation? Try our convenient Pre-Cut Cryogel® Z Blankets.

Use the form below to order custom cuts. Standard roll width is 58″ (147 cm). Quantity discounts follow the pricing table found in the Description section below.

58
Total Area (sq. ft.)
Product Price

Product Description

Aspen Aerogels’ Cryogel® Z is a flexible aerogel composite blanket designed for insulating cold temperature environments ranging from cryogenic to ambient. With a thermal conductivity of 14 mW m-1 K-1 at room temperature, Cryogel insulates even better at lower temperatures with a thermal conductivity of only 10 mW m-1 K-1 at -330°F/-200°C! Laminated with a reflective metal barrier film. Lighter than Spaceloft but a bit dustier. Maximum temperature is 390°F/200°C, density is only 0.13 g cm-3 (4.3 oz/120 g per square foot). Download the SDS or Download the TDS.

Note: Product is dusty; gloves, eye protection, and dust mask recommended for handling.

Don’t want the hassle of bulk insulation? Try our convenient Pre-Cut Cryogel® Z Blankets.

Standard roll width is 58″ (147 cm). Maximum cut-to-size length is dependent on blanket thickness as follows:

Thickness Min Length Max Length
5 mm 5 ft 35 ft
10 mm 5 ft 20 ft

Quantity Discounts

10-mm Thickness
Area (sq ft) 24.17-48.32 48.33-72.49 72.5-96.66 96.67
Length (ft @ 58″ wide) 5 to 10 10 to 15 15 to 20 20
Price/sq ft $42.67 $34.31 $29.74 $28.09

Additional Information

Weight 4.3 oz
Dimensions 60 x 12 x 12 in
