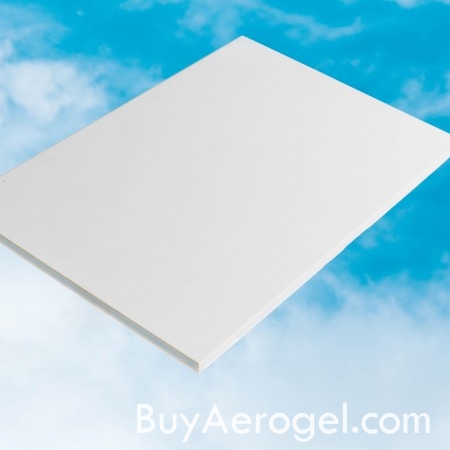

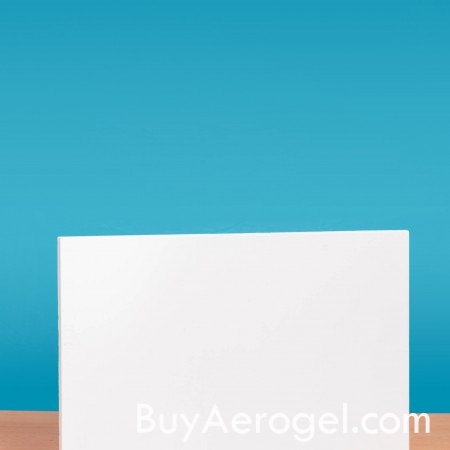

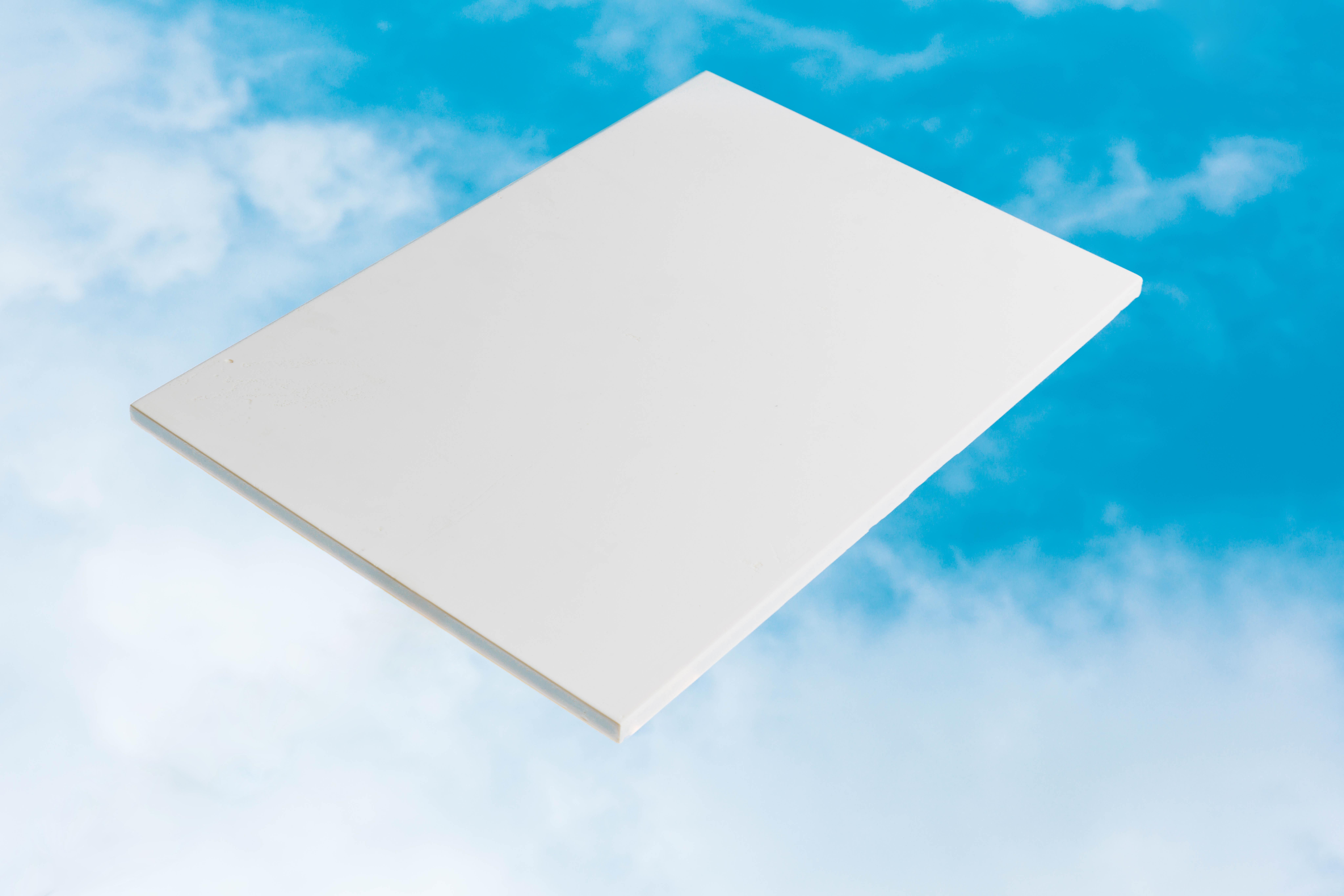

Slentite® Aerogel Panels for Construction

From: $50

Slentite® from Aerogel-it is a revolutionary new type of insulation board for use in construction, appliances, cold chain logistics, and engineering. Born in the laboratories of BASF and brought to market by Aerogel-it, Slentite has an R-value of 8 per inch, making it the most insulating construction insulation board on the market. An open-celled structure and moisture management properties makes it especially suitable for applications where humidity is a challenge such as interior insulation in buildings. Unlike most spray foams, Slentite’s insulative performance doesn’t degrade over time. Water proof, dust free, machinable, and easy to install. At just 13-15 mm thick, Slentite is ideal for stopping heat loss in tight spaces where traditional insulation materials are inadequate. For an even more effective thermal barrier, these panels are easily glued together using a non-solvent-based adhesive to make thicker panels. As an organic material, Slentite provides a limited susceptibility to fire (Euroclass E EN 13501-1). Sold in full panel, half panel, and tile sizes.

Download the material technical datasheet here. For machining and applications guidelines, view the Slentite applications guide here. Download the Slentite material safety datasheet (SDS) here.

For operating temperatures up to 300°C, choose Airloy® HR instead.

Density Compressive Yield Strengtha Thermal Conductivitya R Value per Incha,b
0.12 ± 0.02 g/cc >0.3 MPa 18 mW/m-K 8.0

aSee attached datasheet for measurement method
bR value in US units ft2·°F·h/BTU

For volume purchases/pricing, or custom thicknesses, please contact us.

Please see our patent and trademark information page for information for patents protecting this product.

Clear selection
SKU: P-AI.S. Categories: , . Tags: , , , , . Brand: .

Product Description

Slentite® from Aerogel-it is a revolutionary new type of insulation board for use in construction, appliances, cold chain logistics, and engineering. Born in the laboratories of BASF and brought to market by Aerogel-it, Slentite has an R-value of 8 per inch, making it the most insulating construction insulation board on the market. An open-celled structure and moisture management properties makes it especially suitable for applications where humidity is a challenge such as interior insulation in buildings. Unlike most spray foams, Slentite’s insulative performance doesn’t degrade over time. Water proof, dust free, machinable, and easy to install. At just 13-15 mm thick, Slentite is ideal for stopping heat loss in tight spaces where traditional insulation materials are inadequate. For an even more effective thermal barrier, these panels are easily glued together using a non-solvent-based adhesive to make thicker panels. As an organic material, Slentite provides a limited susceptibility to fire (Euroclass E EN 13501-1). Sold in full panel, half panel, and tile sizes.

Download the material technical datasheet here. For machining and applications guidelines, view the Slentite applications guide here. Download the Slentite material safety datasheet (SDS) here.

EN.

For operating temperatures up to 300°C, choose Airloy® HR instead.

Density Compressive Yield Strengtha Thermal Conductivitya R Value per Incha,b
0.12 ± 0.02 g/cc >0.3 MPa 18 mW/m-K 8.0

aSee attached datasheet for measurement method
bR value in US units ft2·°F·h/BTU

For volume purchases/pricing, or custom thicknesses, please contact us.

Please see our patent and trademark information page for information for patents protecting this product.

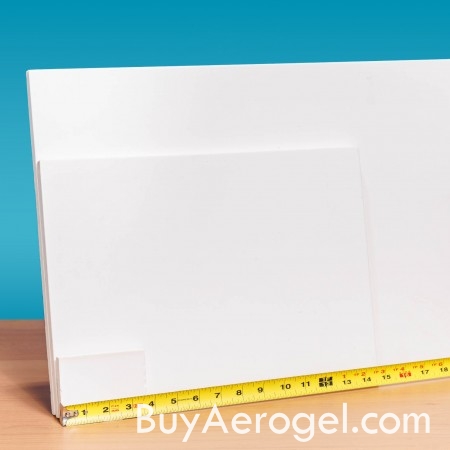

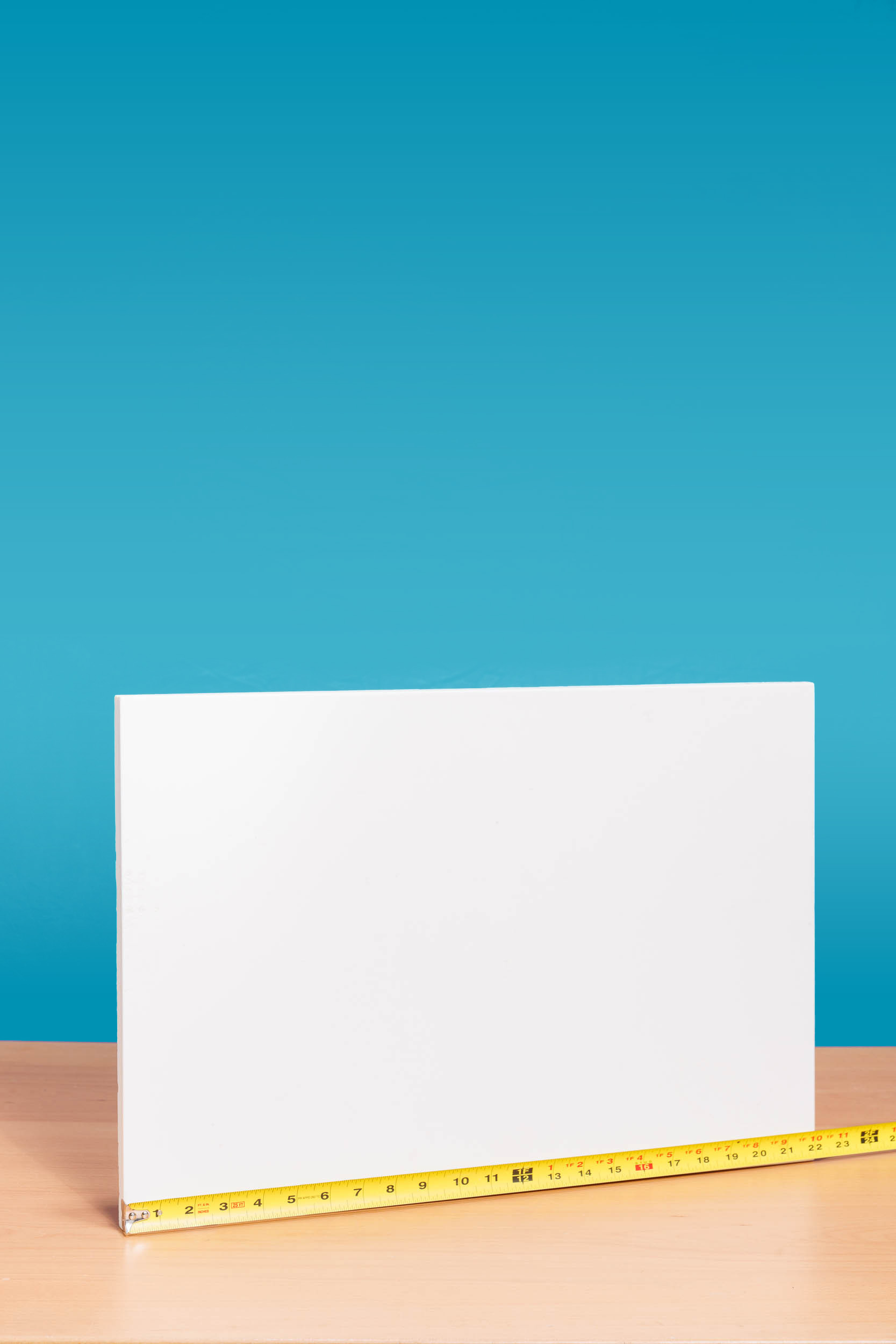

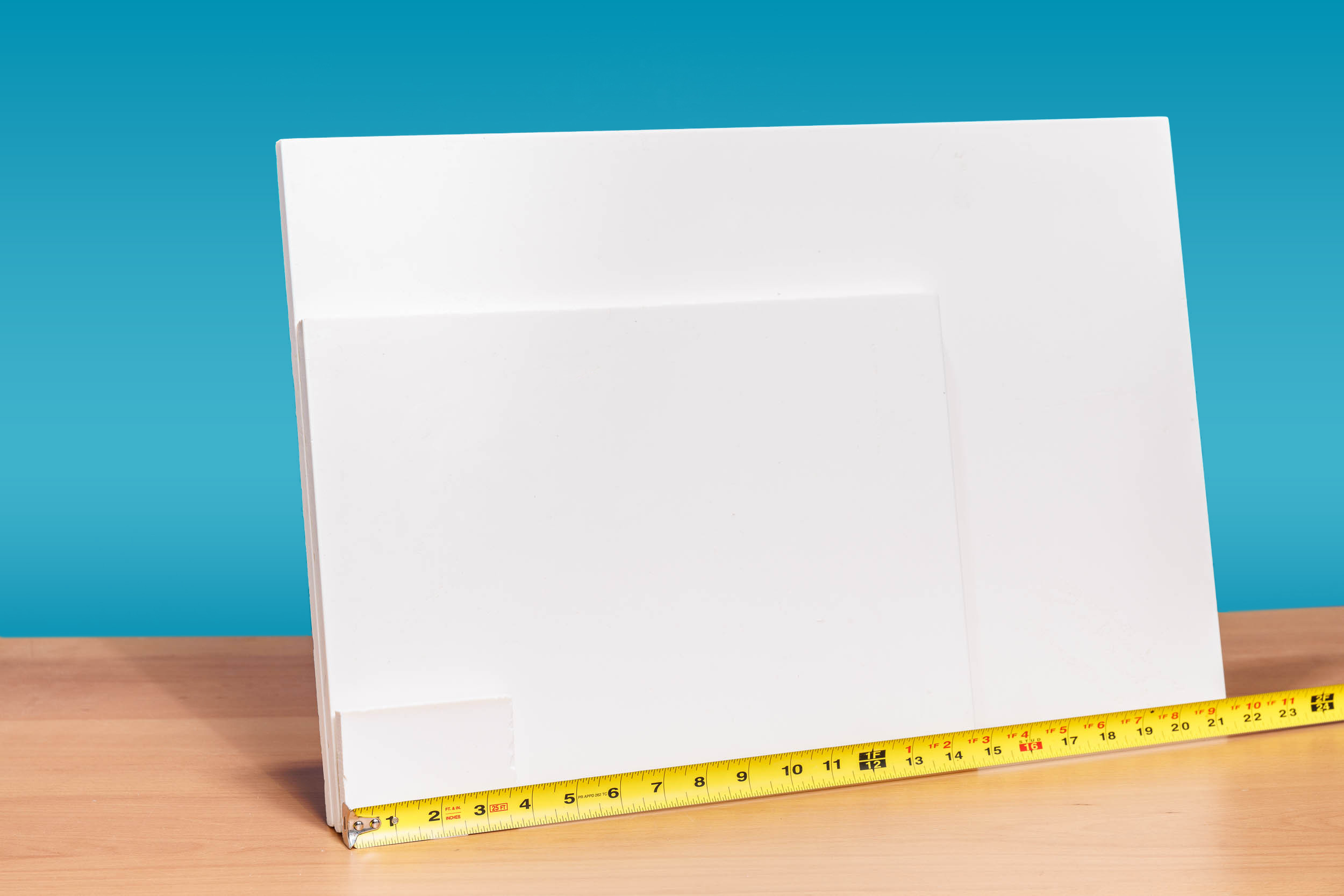

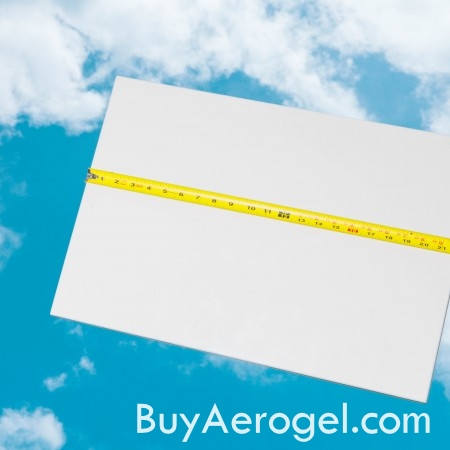

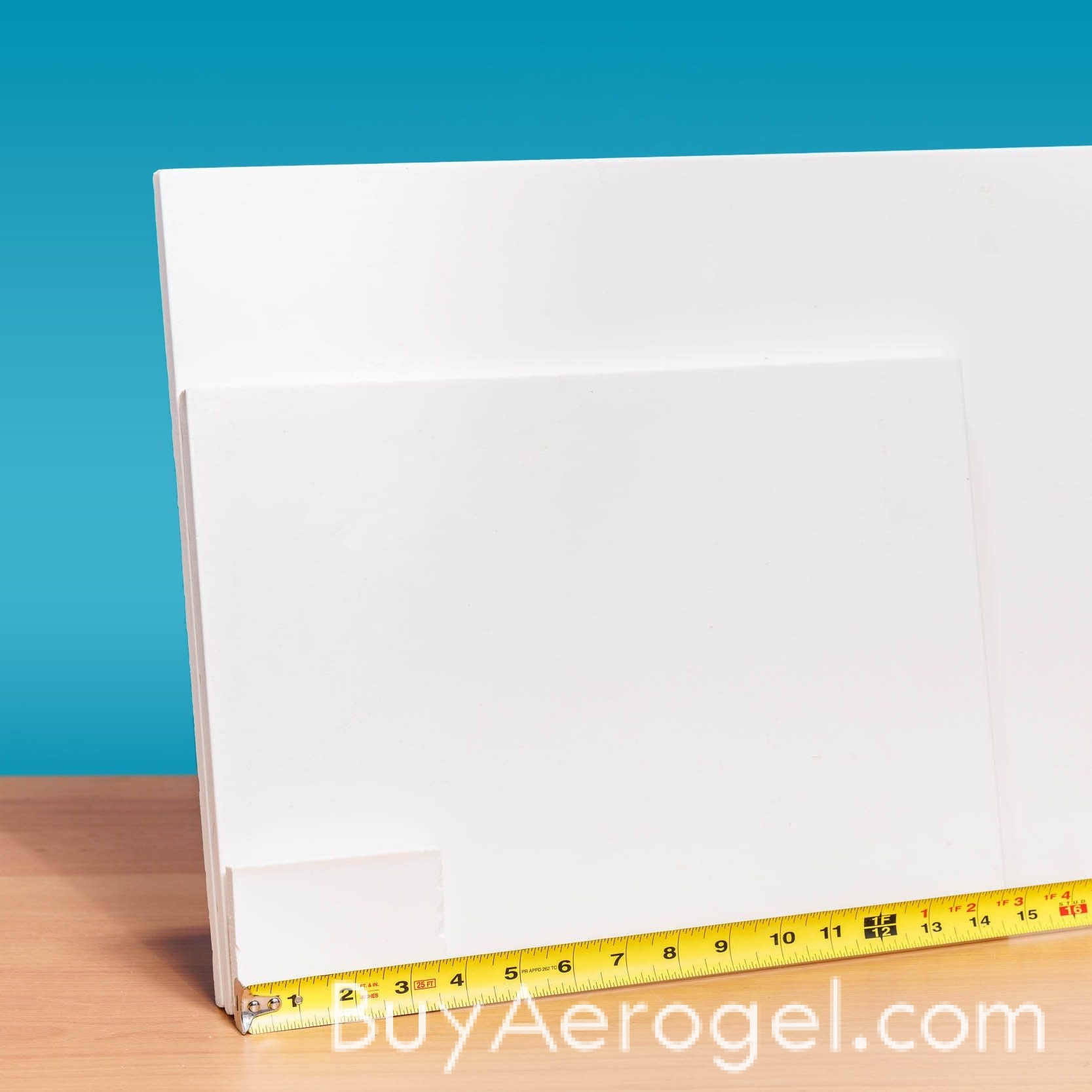

Part Size
Tile 2″ x 3″ x 0.5″-0.6″ (5 cm x 7.5 cm x 1.3-1.5 cm)
1/2 Panel 10.8″ x 14.2″ x 0.5″-0.6″ (27 cm x 36 cm x 1.3-1.5 cm)

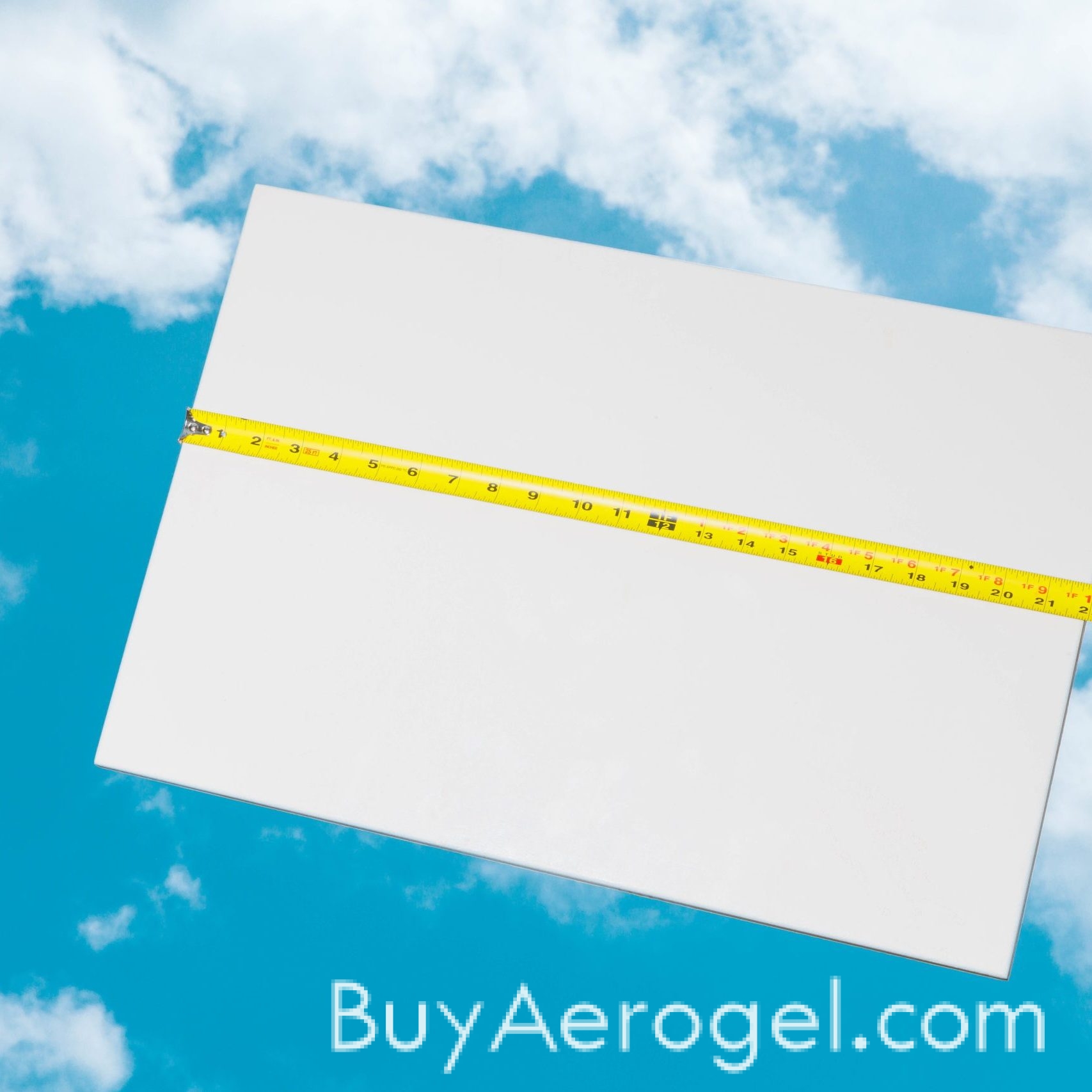

Panel 21.7″ x 14.2″ x 0.5″-0.6″ (55 cm x 36 cm x 1.3-1.5 cm)
